double convex lens

double convex lens

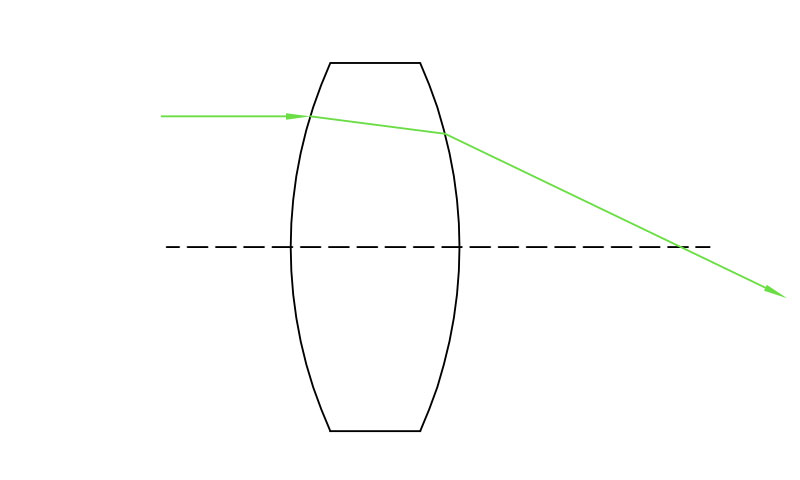

Bi-Convex lens(BCX lens) has positive focus, it can show real image and virtual image.it is most suitable where the object and image are on opposite sides of the lens and the ratio of the image and object (conjugate ratio) distances is between 0.2 to 5. it always used in like Beam Expander, Projection Optics Sys, Optical Viewer, Optical Character Reader

double convex lens
double convex lens

Specifications

Material:  grade A optical glass or Fused Silica
Diameter:  Smallest up to 2mm.
Diameter Tolerance:  +0.0, -0.1 mm
Paraxial Focal Length: ±2%
Tc Tolerance: ±0.1mm
Clear Aperture:  >85%
Surface Quality:  40-20 S/D
Surface Figure:  N=3, △N=0.5
Centration: ±3 arcmin
Coating:  Single layer MgF2 broadband AR coating
